Metal Spiral Mesh For Building

Spiral mesh features

---

The spiral mesh is usually made of a metal flat wire or a round wire to form flat spiral, which is connected with metal wave wire and welded together at both ends. It has high strength, strong features, strong function, easy to maintain, long service life and good protection for building structure. Applied in the advanced building curtain, stair protection, luxury office buildings, hotels, luxury ballroom, business hall indoor partition, building in a glorious light, elegant and delicate.

Spiral mesh material selection

---

The indoor recommended stainless steel wire, a variety of colors can choose wire surface spray paint.
Outdoor recommended stainless steel wire.

Please contact our engineers for special specifications @ Email

•

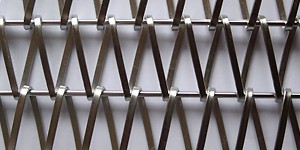

  CT-7148 Spiral Decorative Mesh
  Sprail Dia:2X4mm
  Sprail Pitch:20mm
  Cross Rod Dia:3.5mm
  Cross Rod Pitch:40mm
  Weight:3.9kg/m²
•

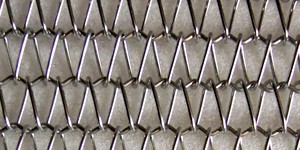

  CT-7026 Spiral Decorative Mesh
  Sprail Dia:2.6mm
  Sprail Pitch:24.3mm
  Cross Rod Dia:2.6mm
  Cross Rod Pitch:22.5mm
  Weight:6.8kg/m²
•

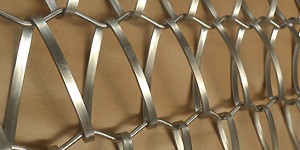

  CT-7324 Spiral Decorative Mesh
  Sprail Dia:1.7X5mm
  Sprail Pitch:36.5mm
  Cross Rod Dia:3mm
  Cross Rod Pitch:60mm
  Weight:4.6kg/m²

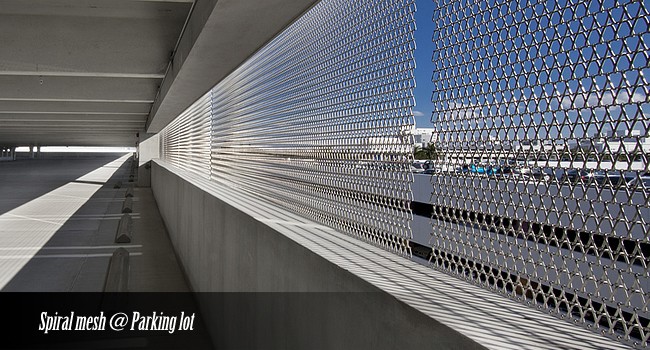

Spiral mesh case

---
