Double Wire Balanced Weave Conveyor Belt

Double Wire Balanced Weave Conveyor Belt Features

The double wire balanced wava conveyor belt is connected by a straight rod with two spiral wire, the mesh opening generally small. Can choose two kinds of model, the common type use round wire to make spiral mesh, can match the chain type . Another use flat wire to make spiral mesh , the flat wire mesh get better flatness.

The general type is connected by the left and right side of the net, which is connected by straight string. The spiral mesh is dense and the mesh spacing is even, which can make the conveyor belt walk smoothly. The mesh belt is suitable for conveying line with relatively small volume and relatively heavy quality. The two ends can be used for various edge treatment types.

Match chain conveyor belt is generally by chain drive small shaft drives the mesh belt to run again, wear into the net bar shaft, small to wear into the chain hole on both ends of the shaft, so as to achieve the chain driven conveyor mesh belt, chain network is stable, transmission torque is small.

Double Wire Balanced Weave Conveyor Belt Applications

Widely used in metallurgy, machinery industry, high-temperature heat treatment of automatic lines and large load of automatic transmission lines, and in the glassware annealing furnace, the electronics industry, the food industry can be a reasonable use.

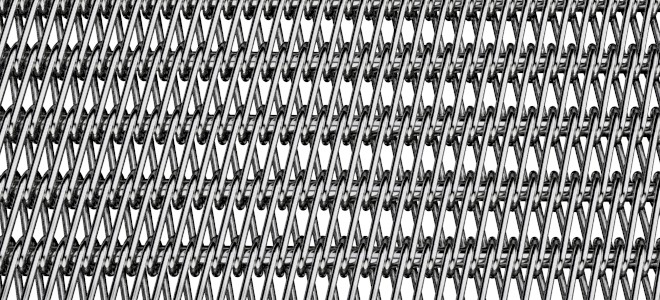

Round Wire Balance Conveyor Belt

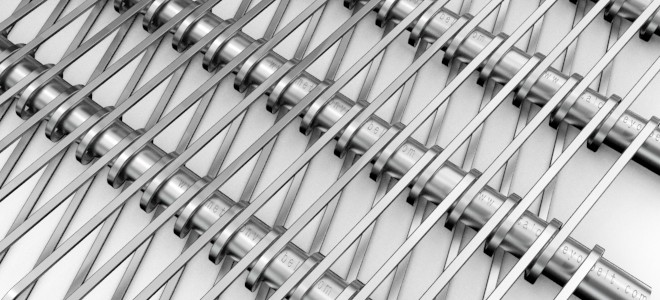

Flat Wire Balance Conveyor Belt

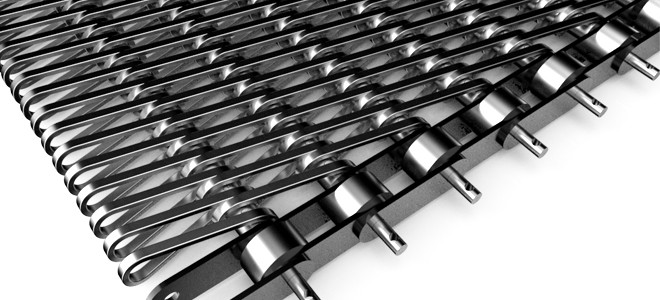

Chain Balance Conveyor Belt

Conveyor Belt Reference

Round wire balance conveyor belt technical data
Type Spiral Number
Stripe Number
Rod Dia.(d2)
Belt Thickness
Spiral Wire Edge Type
Ds3.5/3.5 100 46 3.5 14 Round Ⅲ Ⅳ Ⅵ
Ds2.8/3.5 132 71 3.5 12 Round Ⅲ Ⅳ Ⅵ
Ds2.8/2.8 118 60 2.8 11 Round Ⅲ Ⅳ Ⅵ
Ds2.0/2.0 200 125 2.0 9 Round Ⅲ Ⅳ
Ds1.6/1.6 250 200 1.6 7.5 Round Ⅲ Ⅳ
Please contact our engineers for special specifications @ Email

Equipped chain conveyor belt technical data
Type Rod Pitch(n)
spiral Pitch(p)
Rod Dia.(d1)
Belt Thickness
Equipped Chain Spiral Wire Edge Type
Ds25.4x 25.4 12,16 5-14 8-17 16A,16B Round / Flat Ⅲ Ⅴ
Ds31.75x 31.75 12,16,20 6-14 9-17 20A,20B Round / Flat Ⅲ Ⅴ
Ds38.1x 38.1 12,16,20,22 7-14 10-17 24A,24B Round / Flat Ⅲ Ⅴ
Ds44.45x 44.45 12,16,20,22,25 9-14 12-17 28A Round / Flat Ⅲ Ⅴ
Ds50.8x 50.8 12,16.20,22,25,27 8-14 13-17 32A Round / Flat Ⅲ Ⅴ
Bs63.5x 63.5 12,16.20,22,25,27,37 10-14 13-17 32A Round / Flat Ⅲ Ⅴ
Please contact our engineers for special specifications @ Email
