Wave-stringed Wire Mesh Belt

Wave-stringed Wire Mesh Belt Features

The wave-stringed conveyor belt is used in the series of wave string, so that the position of each spiral wire is correctly positioned so that the mesh belt deformation and extension can be minimized. The mesh spacing is even, which can make the mesh belt walk smoothly.
It is suitable for conveying line with relatively small volume and relatively light texture, with various edge treatment types. General open hole is bigger, use round shape wire or flat wire to do spiral wire.

Wave-stringed Wire Mesh Belt Applications

Food industry drying, washing, and mechanical parts of the cleaning, drying, cooling, light load the delivery of objects, do the most basic chain drive.

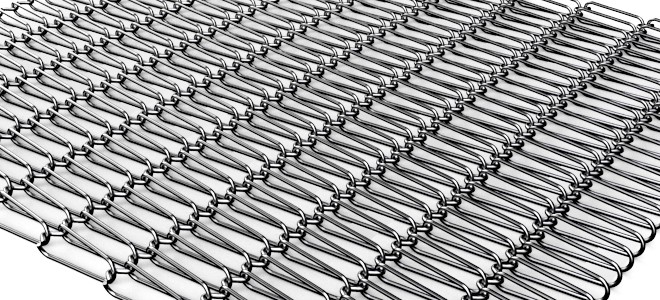

Wave-stringed Wire Mesh Belt

Wave-stringed Wire Mesh Belt Reference

Wave-stringed wire mesh belt technical data
Type Spiral Number
Stripe Number
Rod Dia.(d2)
Belt Thickness
Spiral Wire Edge Type
Bw3.5/3.5 80 72 3.5 12.5 Round Ⅲ Ⅳ
Bw3.0/3.0 71 57 3.0 11 Round Ⅲ Ⅳ
Bw2.8/3.0 60 52 3.0 11 Round Ⅲ Ⅳ
Bw2.0/2.5 118 62 2.5 9 Round Ⅲ Ⅳ
Bw1.6/2.0 200 158 2.0 7.5 Round Ⅲ Ⅳ
Bw1.2/1.6 227 94 1.6 6 Round Ⅲ Ⅳ
Bw1.2/1.2 167 91 1.2 6 Round Ⅲ Ⅳ
Please contact our engineers for special specifications @ Email
