Reinforced Mesh Belt

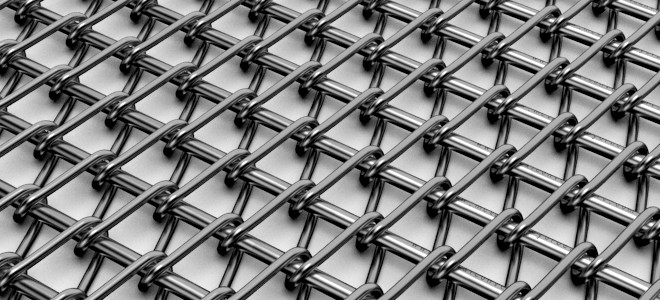

Reinforced Mesh Belt Features

The reinforcing mesh belt adopts the straight rod, screw rod and screw. It is composed of the left and right helix, and the adjacent two spiral strands are woven into a string. The two spiral wire are connected with each other, the mesh belt opening is stable, the grid density is larger, and the mesh spacing is even.
The mesh belt is suitable for objects with relatively small volume and relatively light weight. Both ends can be treated with multiple edges.

Reinforced Mesh Belt Applications

Heat treatment, mechanical parts of the annealing, food drying, leather, asbestos products processing

Reinforced Mesh Belt

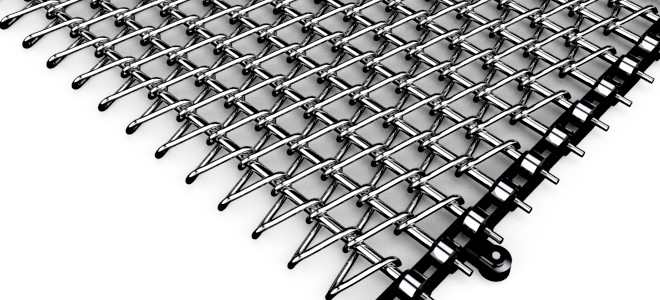

Chain Reinforced Mesh Belt

Conveyor Belt Reference

Reinforcement mesh belt technical data

Type	Spiral Number Pieces/m	Stripe Number Pieces/m	Rod Dia.(d2) mm	Belt Thickness mm	Spiral Wire	Edge Type
Rs3.5/4	25	29	4	14	Round	Ⅲ Ⅳ Ⅵ
Rs3.5/3.5	50	46	3.5	14	Round	Ⅲ Ⅳ Ⅵ
Rs2.8/2.8	50	46	2.8	11	Round	Ⅲ Ⅳ Ⅵ
Rs2.0/2.0	100	114	2.0	9	Round	Ⅲ Ⅳ
Rs1.6/1.6	100	80	1.6	7	Round	Ⅲ Ⅳ
Please contact our engineers for special specifications @ Email

Equipped chain conveyor belt technical data

Type	Rod Pitch(n) mm	spiral Pitch(p) mm	Rod Dia.(d1) mm	Belt Thickness mm	Equipped Chain	Spiral Wire	Edge Type
Rs25.4x	25.4	16,	5-14	8-17	16A,16B	Round	Ⅲ Ⅴ
Rs31.75x	31.75	16,20	6-14	9-17	20A,20B	Round	Ⅲ Ⅴ
Rs38.1x	38.1	16,20,22	7-14	10-17	24A,24B	Round	Ⅲ Ⅴ
Rs44.45x	44.45	16,20,22,25	9-14	12-17	28A	Round	Ⅲ Ⅴ
Rs50.8x	50.8	16.20,22,25,27	8-14	13-17	32A	Round	Ⅲ Ⅴ
Rs63.5x	63.5	16.20,22,25,27,37	10-14	13-17	32A	Round	Ⅲ Ⅴ
Please contact our engineers for special specifications @ Email
