Double-wire Reinforced Mesh Belt

Double-wire Reinforced Mesh Belt Features

The Double-wire reinforcing mesh belt adopts the straight rod, screw rod and screw. It is composed of the double helix of the left and right, and the adjacent four spiral wires are woven into a string. The two threads are connected with each other, the opening of the hole is stable, the grid density is larger and the grid spacing is even.
The mesh belt is suitable for objects with relatively small volume and relatively light weight. Both ends can be treated with multiple edges.

Double-wire Reinforced Mesh Belt Applications

Heat treatment, mechanical parts of the annealing, food drying, leather, asbestos products processing

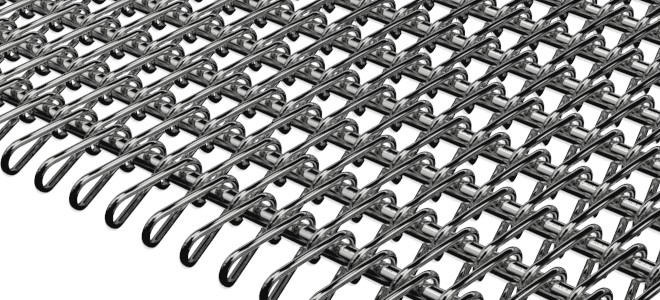

Double-wire Reinforced Mesh Belt

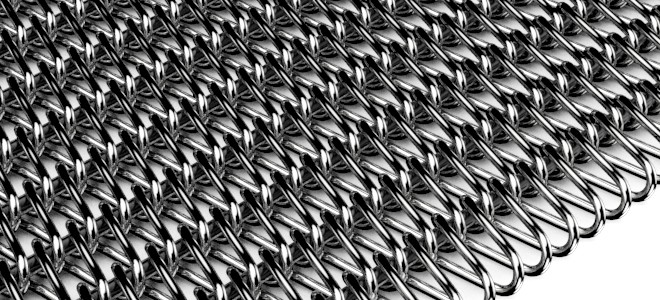

Chain Double-wire Reinforced Mesh Belt

Conveyor Belt Reference

Double-wire Reinforcement mesh belt technical data

Type	Spiral Number Pieces/m	Stripe Number Pieces/m	Rod Dia.(d2) mm	Belt Thickness mm	Spiral Wire	Edge Type
DRs3.5/3.5	100	46	3.5	14	Round	Ⅲ Ⅳ Ⅵ
DRs2.8/3.5	132	71	3.5	12	Round	Ⅲ Ⅳ Ⅵ
DRs2.8/2.8	118	60	2.8	11	Round	Ⅲ Ⅳ
DRs2.0/2.0	200	125	2.0	7.5	Round	Ⅲ Ⅳ
Please contact our engineers for special specifications @ Email

Equipped chain conveyor belt technical data

Type	Rod Pitch(n) mm	spiral Pitch(p) mm	Rod Dia.(d1) mm	Belt Thickness mm	Equipped Chain	Spiral Wire	Edge Type
Rs25.4x	25.4	16,	5-14	8-17	16A,16B	Round	Ⅲ Ⅴ
Rs31.75x	31.75	16,20	6-14	9-17	20A,20B	Round	Ⅲ Ⅴ
Rs38.1x	38.1	16,20,22	7-14	10-17	24A,24B	Round	Ⅲ Ⅴ
Rs44.45x	44.45	16,20,22,25	9-14	12-17	28A	Round	Ⅲ Ⅴ
Rs50.8x	50.8	16.20,22,25,27	8-14	13-17	32A	Round	Ⅲ Ⅴ
Rs63.5x	63.5	16.20,22,25,27,37	10-14	13-17	32A	Round	Ⅲ Ⅴ
Please contact our engineers for special specifications @ Email
